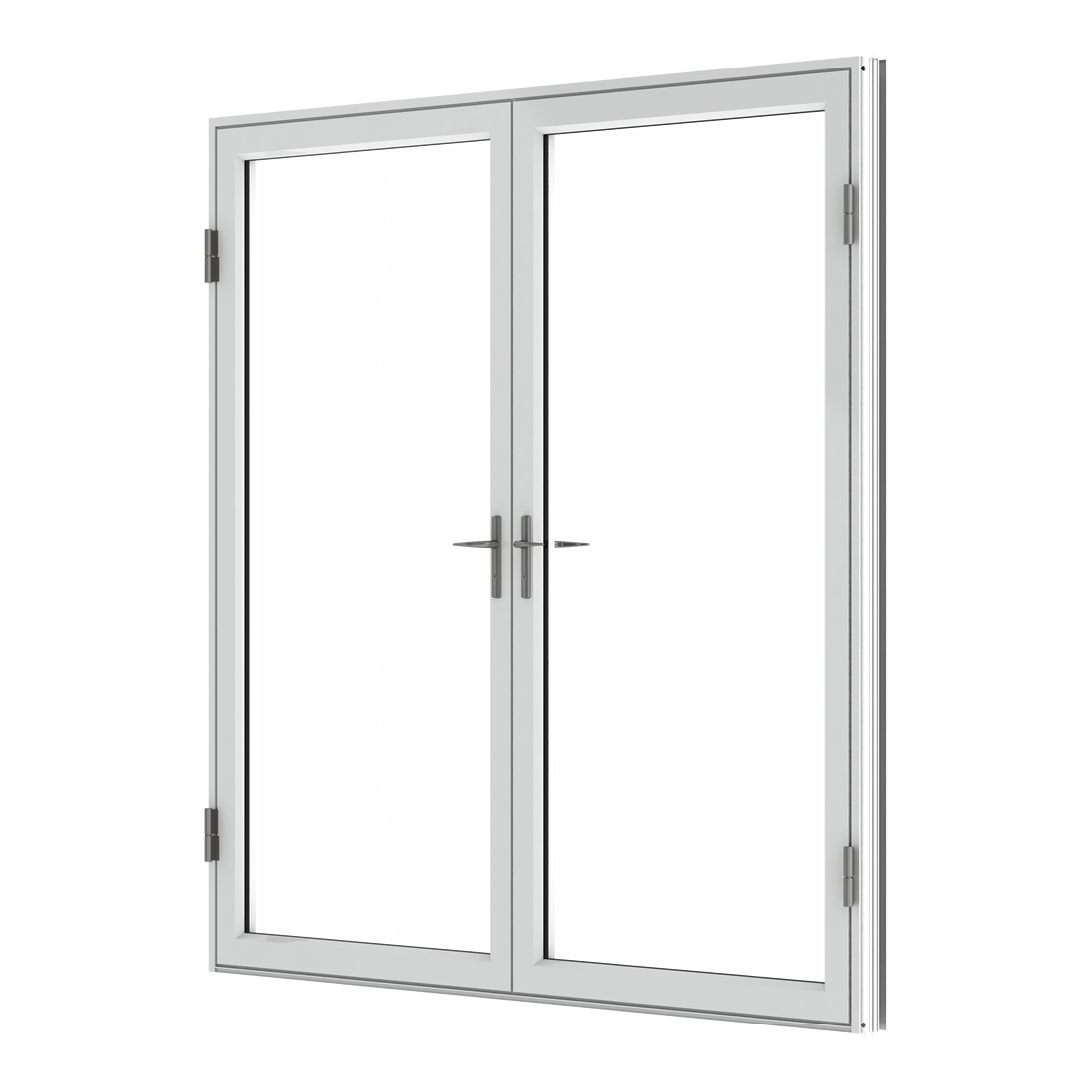

Prestige® ES-46T Swing Door

The ES-46T is a thermally broken, impact rated, terrace door for insulating laminated glass. This product is available with sidelites and transom. Its excellent performance makes it ideal for high-rise condominiums and hotels.

Designed for the USA market

FEATURES
  • Hurricane Resistant
  • Thermally Broken

Configurations

System Description

  • Small and large missile impact rated
  • Maximum size for single door: 41 3/16″ width x 108″ height , 38 3/16” width x 120” height , With transom: 41 3/16” width x 134″ height
  • Maximum size for double door: 80″ width x 98″ height , 74″ width x 120″ height , With transom: 80″ width x 134″ height , With sidelites: 98″ Width x 160″ Height
  • Frame depth: 4 1/2″
  • Standard threshold height: 2 1/4″
  • ADA threshold height: 1/2″
  • Tested water infiltration: 15 psf.
  • Tested design load: +100/-120 psf.
  • U-value: 0.43 on insulating laminated SB 70
  • SHGC: 0.20 on insulating laminated SB 70

Features

  • ADA threshold and high bottom rail optional
  • Multi-point hardware

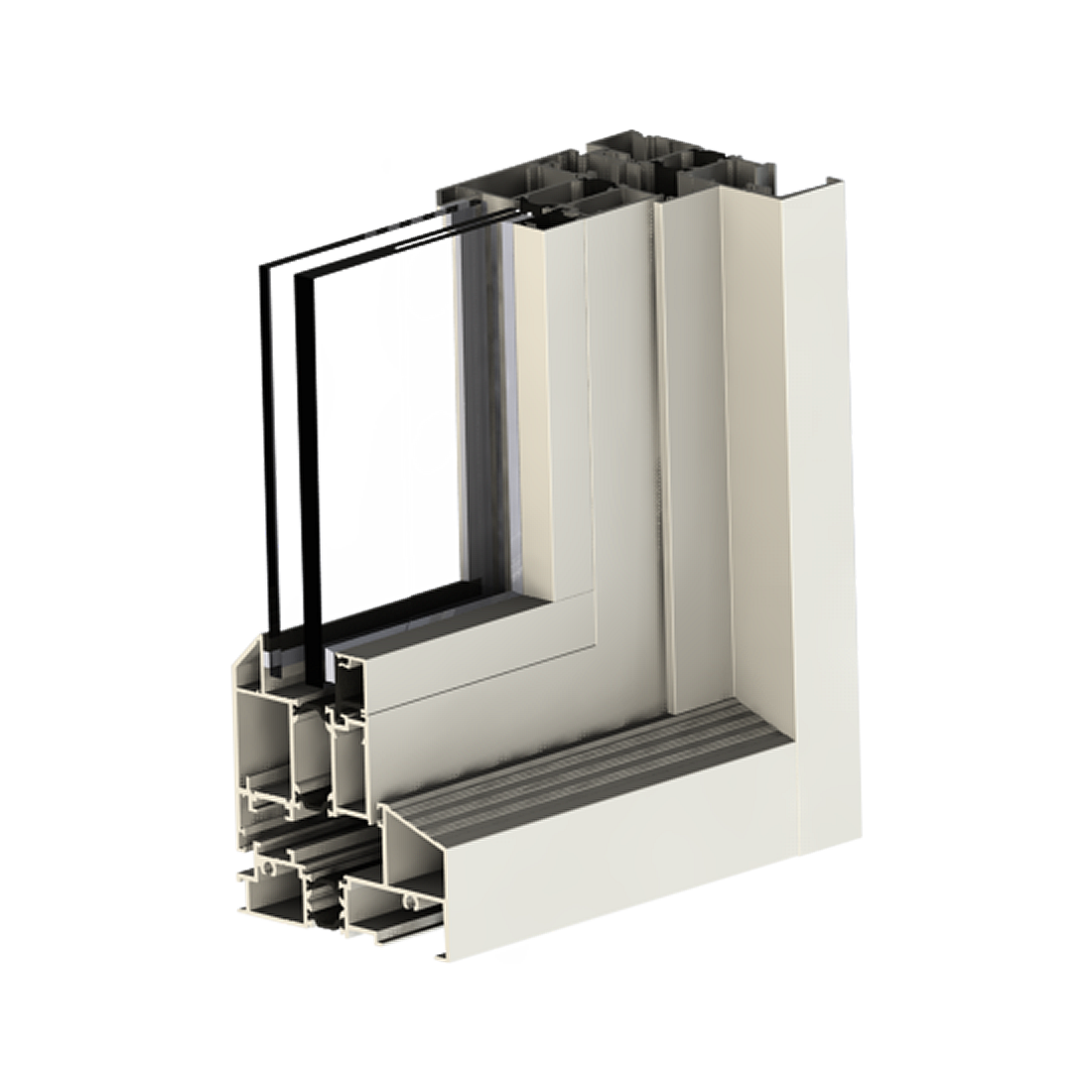

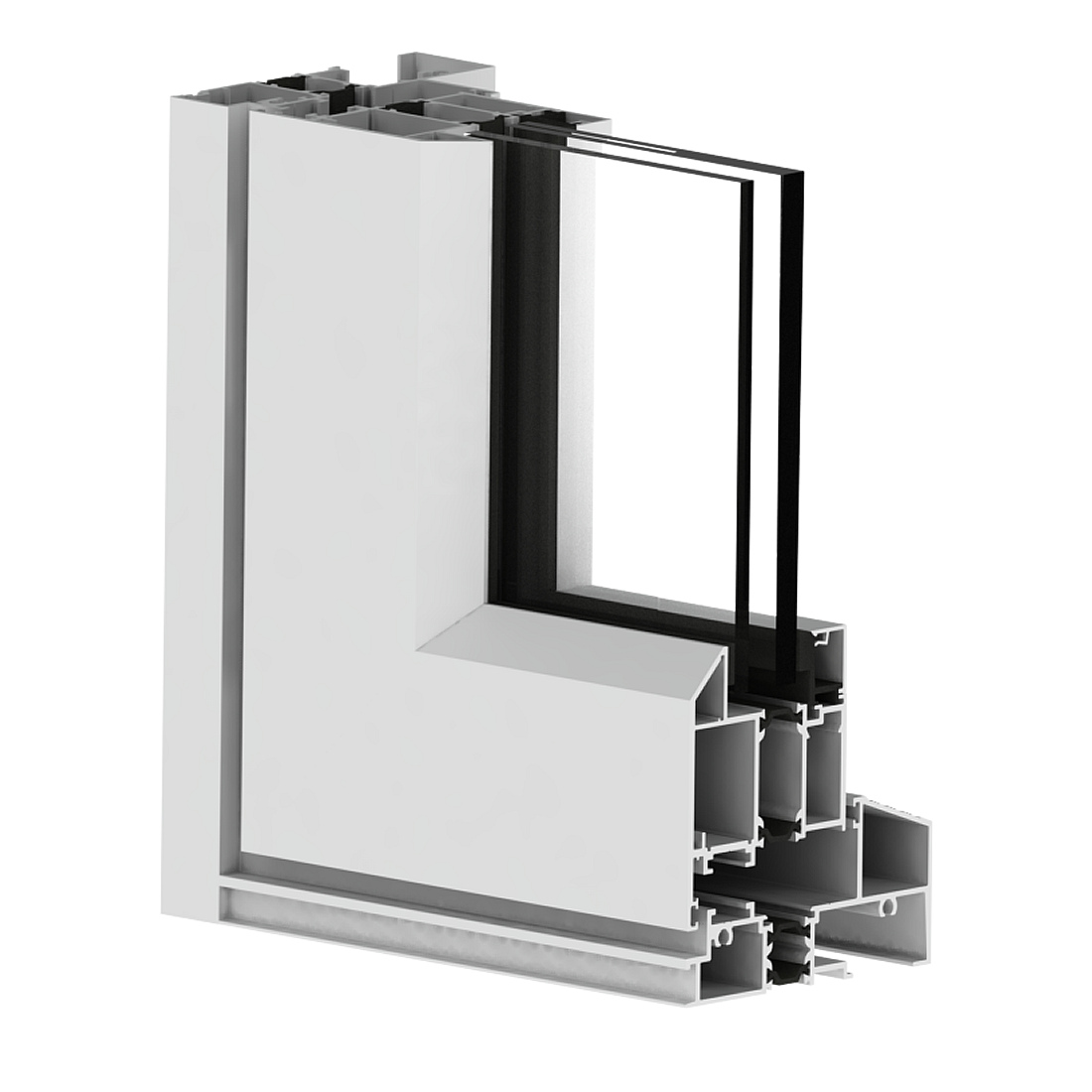

  • Thermally broken frame
