The ES-EL300 is a Swing door with a 1 3/4” panel depth. This product is ideal for balconies and exit-to-open spaces such as patios and pool areas.
Designed for the USA market
FEATURES
Hurricane Resistant
Configurations
System Description
- Large missile impact rated

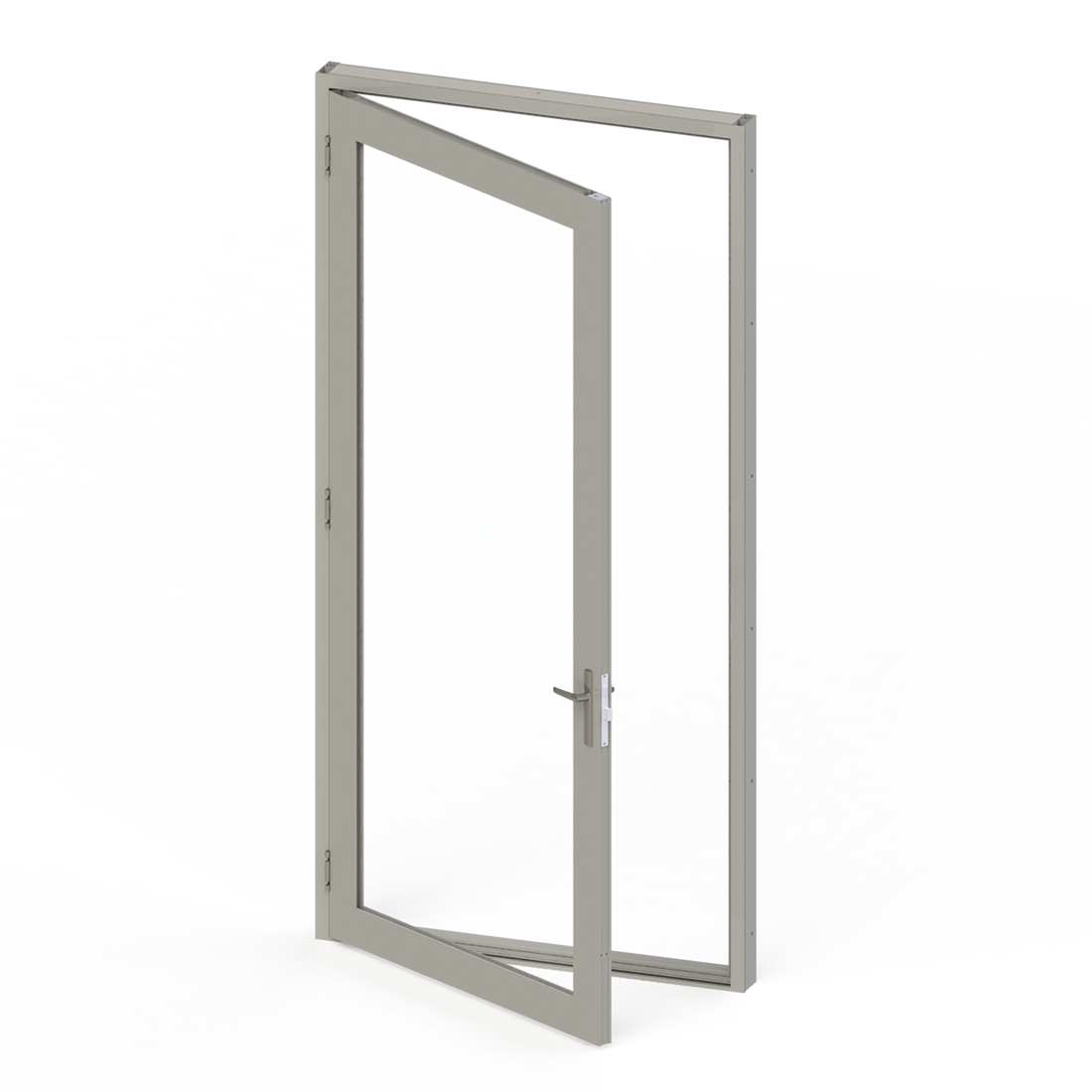

- Out-swing motion
- Frame depth: 4″

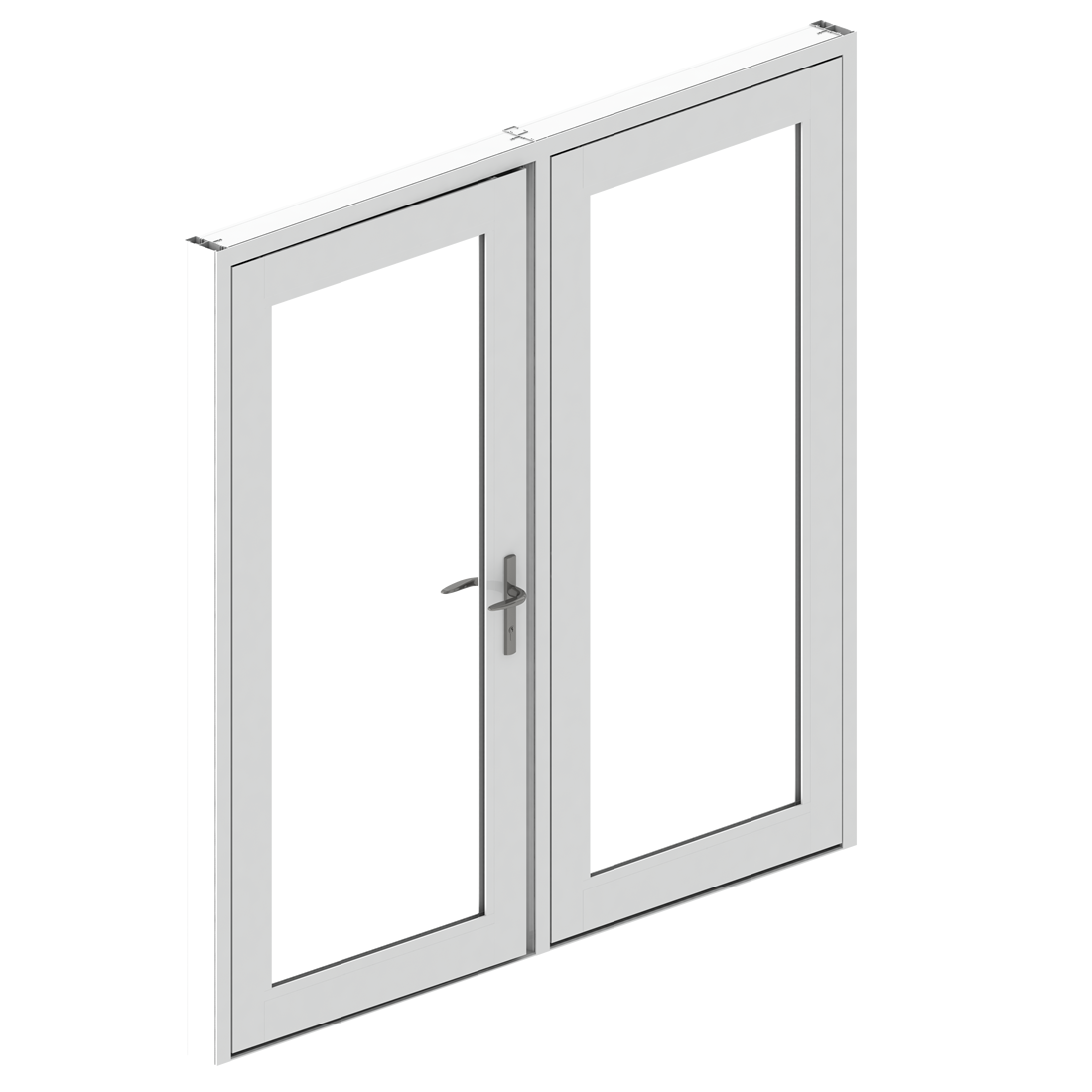

- Configurations: X, XX, O

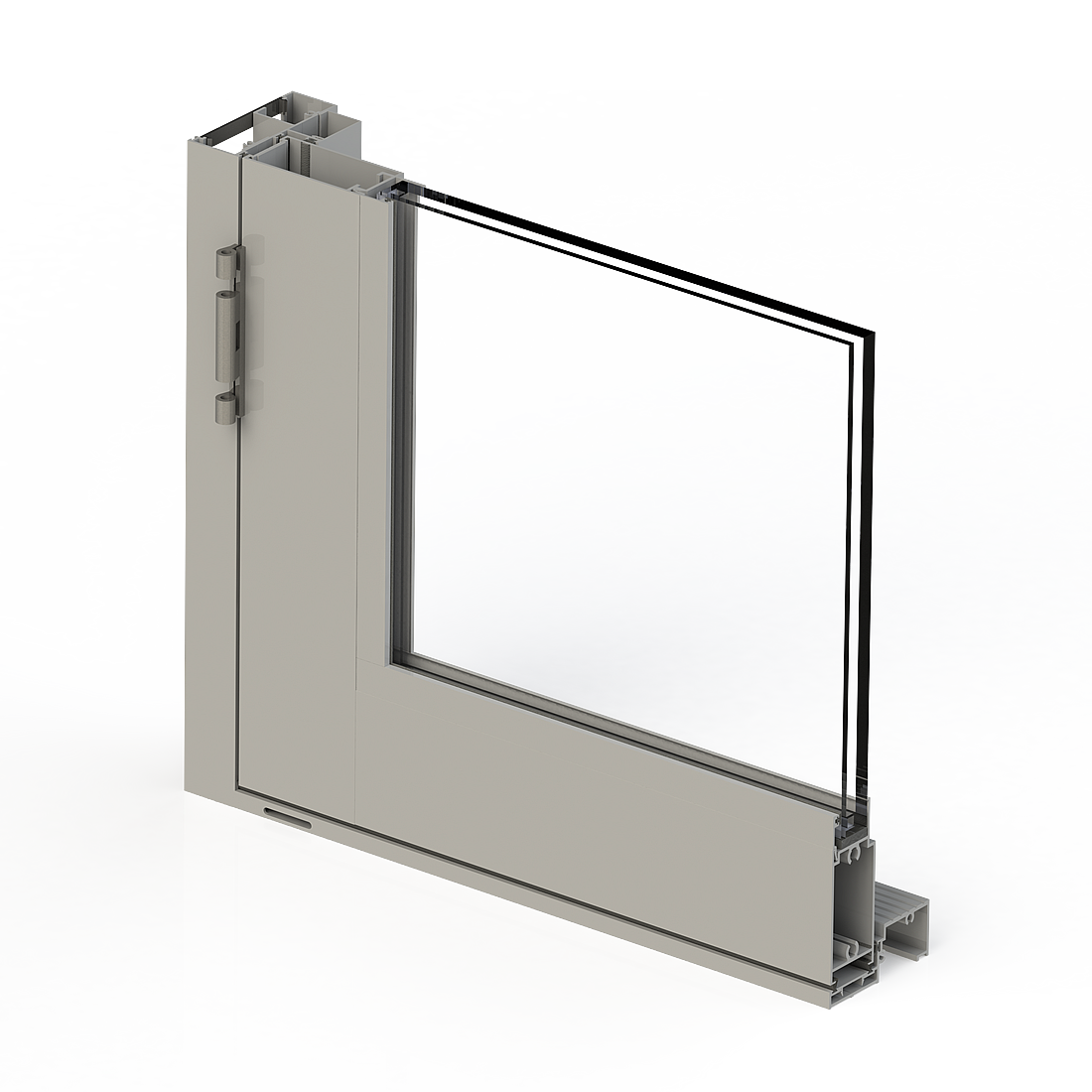

- Designed for laminated, insulating and insulating laminated glass
- Tested water infiltration: 12 psf
- Tested design load: +80/-80 psf
- Maximum size: X: 39 3/4″ width x 108″ height , XX: 76″ width x 108″ height , O/XX/O: 152 5/16″ width x 108″ height
- U-value: 0.70 – IGU (3/16″ SB70 Clear + AS + 3/16″ Clear + 0.090 PVB + 3/16″ Clear) , 1.03 – LG (3/16″ Clear + 0.090 PVB + 3/16″ Clear)
- Insulating laminated glass: 3/16″ + 3/8″ AS + 3/16″ + 0.090 Interlayer + 3/16″ , 1/4″ + 3/8″ AS + 1/8″ + 0.090 Interlayer + 3/16″
- Laminated glass: 3/16″ + 0.090 Interlayer + 3/16″ , 1/4″ + 0.090 Interlayer + 1/8″
- SHGC: 0.20 on clear insulating laminated SB 70
- Minimum width for accessibility is 72 13/16″ on a two panel door
- Door width: 38 3/16″
- Sill height: 1 1/2″
- ADA sizes: Conf. X 38 7/8″
Features
- Wide variety of hardware options including three-point lock, heavy-duty hinges, lever handles, deadbolts, etc.
- High bottom rail and high sill optional
- Self-mating sidelites
- OG muntins
- Saflex PVB, Kuraray PVB, Vanceva Storm and SentryGlas Plus interlayer options
