Elite ® ES-EL150 Fixed Window

The ES-EL150 is a fixed window available in a variety of shapes, allowing a wide range of applications. This window is used to bring light to places with difficult accessibility.

Designed for the USA market

FEATURES
  • Hurricane Resistant

Configurations

System Description

  • Large missile impact rated

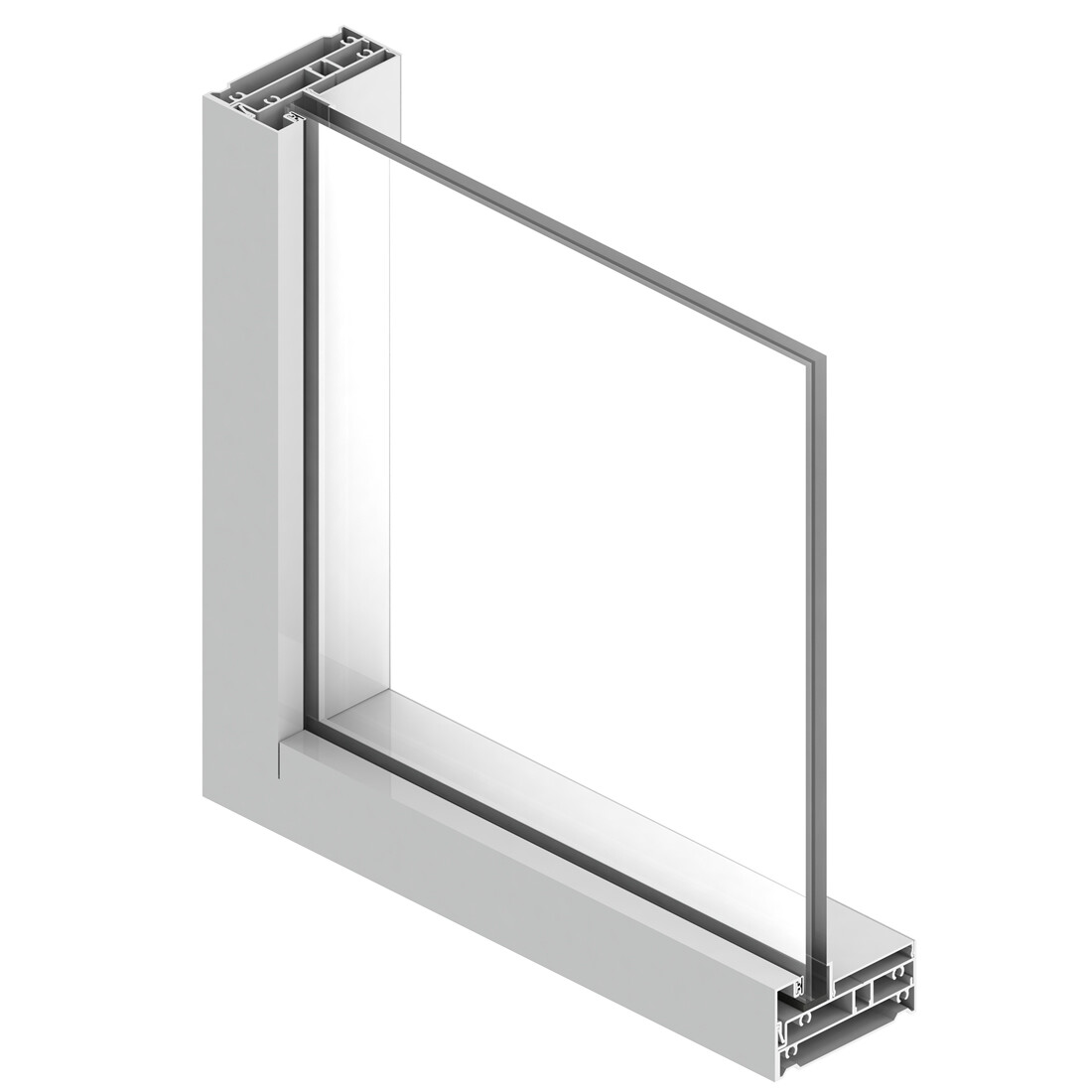

  • Frame depth: 2 5/16″
  • Designed for laminated and insulating glass
  • Tested water infiltration: 12 psf
  • Tested design load: +80/-80 psf
  • Maximum size: 54″ width x 120″ height
  • U-value: 0.51 – IGU (1/8″ SB70 + AS + 1/8″ Clear + 0.090 PVB + 1/4″ Clear) , 1.01 – LG (3/16″ Clear + 0.090 PVB + 3/16″ Clear)
  • Insulating laminated glass: 1/8″ + 5/16″ AS + 1/8″ + 0.090 Interlayer + 1/4″ , 5/32″ + 5/16″ AS + 5/32″ + 0.090 Interlayer + 5/32″
  • Laminated glass: 1/8″ + 0.090 Interlayer + 1/4″ , 3/16″ + 0.090 Interlayer + 3/16″
  • SHGC: 0.26 on clear insulating laminated SB 70

Features

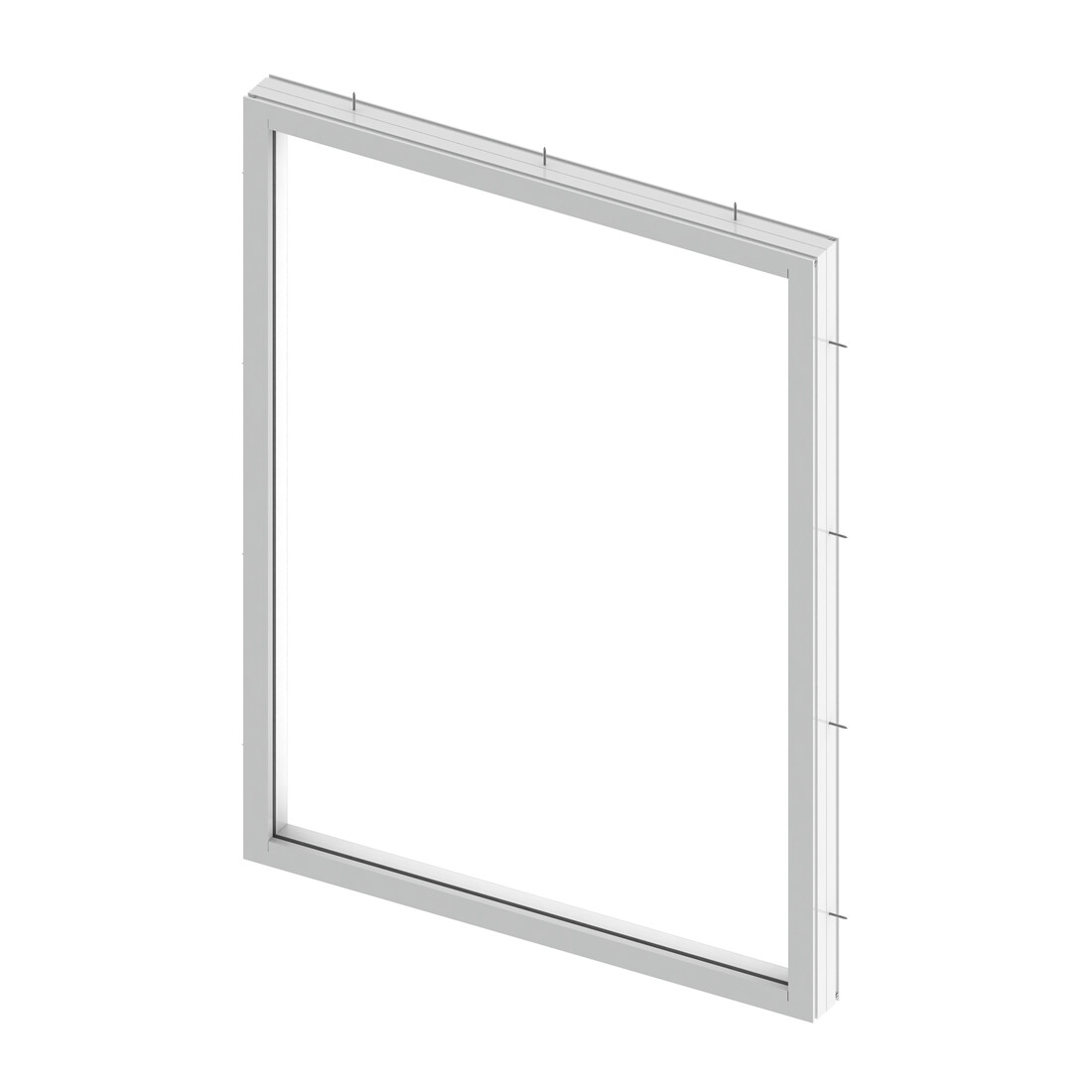

  • Flange frame for masonry, fin frame for wood construction or flush frame for concrete opening
  • Architectural shapes available
  • Minimum radius: 14″
  • Saflex PVB, Kuraray PVB, Vanceva Storm and SentryGlas Plus interlayer options
