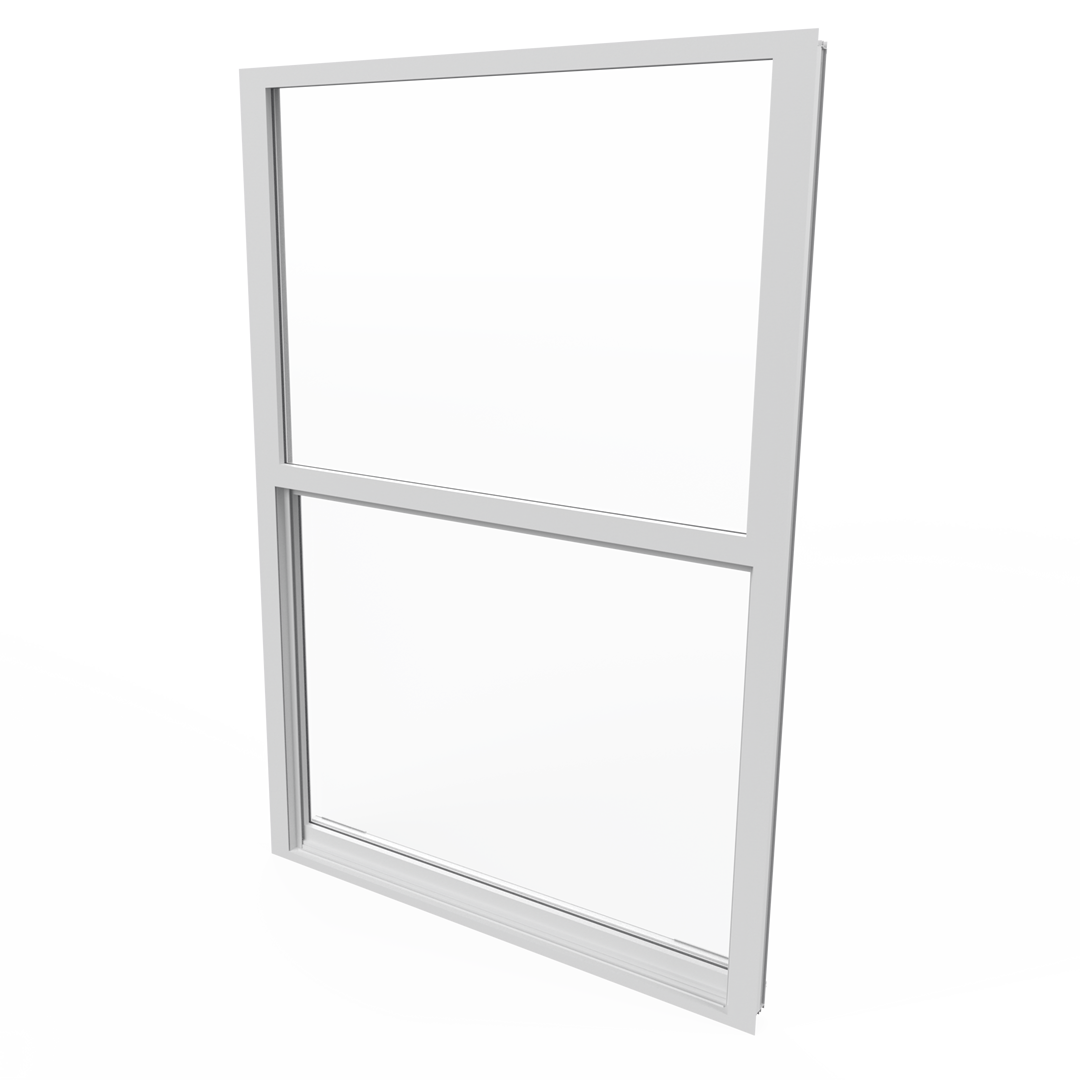

Elite ® ES-EL100 Single Hung Window

SKU: ES-EL100

The ES-EL100 is a single-hung, impact-rated window that easily adapts to any design specification, satisfying the most demanding construction and architectural standards for security, strength and durability. ES-EL100 is designed for narrow openings to resist high pressures. Single-hung systems are known for their excellent water intrusion performance Designed for the USA market
FEATURES
  • Hurricane Resistant

Configurations



System Description

  • Large missile impact rated
  • Frame depth: 2 15/16"
  • Configuration: O/X
  • Designed for laminated, insulating, and insulating laminated glass
  • Tested water infiltration: 12 psf
  • Tested design load: +80/-80 psf LMI
  • Maximum size: 53 1/8" width x 76" height
  • U-value: 0.64 - IGU (1/8" SB70 Clear + AS + 1/8" Clear + 0.090 PVB + 1/8" Clear) , 0.96 - LG (1/8" Clear + 0.090 PVB + 1/8" Clear)
  • Insulating laminated glass: 1/8"+ 3/8" AS + 1/8" + 0.090 Interlayer + 1/8" , 1/8" + 5/16" AS + 1/8" + 0.090 Interlayer + 1/4"
  • Laminated glass: 1/8" + 0.090 Interlayer + 1/8" , 1/8"+ 0.090 Interlayer + 1/4"
  • Standard egress size: 25 5/8" x 98" for the minimum window width (*) , 39 3/4" x 64" for the minimum window height (*)
  • SHGC: 0.23 on clear insulating laminated SB 70

Features

  • Block and tackle or ultra-lift balances
  • Bottom spring latch or sweep lock
  • Flange frame for masonry, fin frame for wood construction, or flush frame for concrete opening
