Prestige® ES-P252 Casement/Awning/Fixed Window

ES-H340

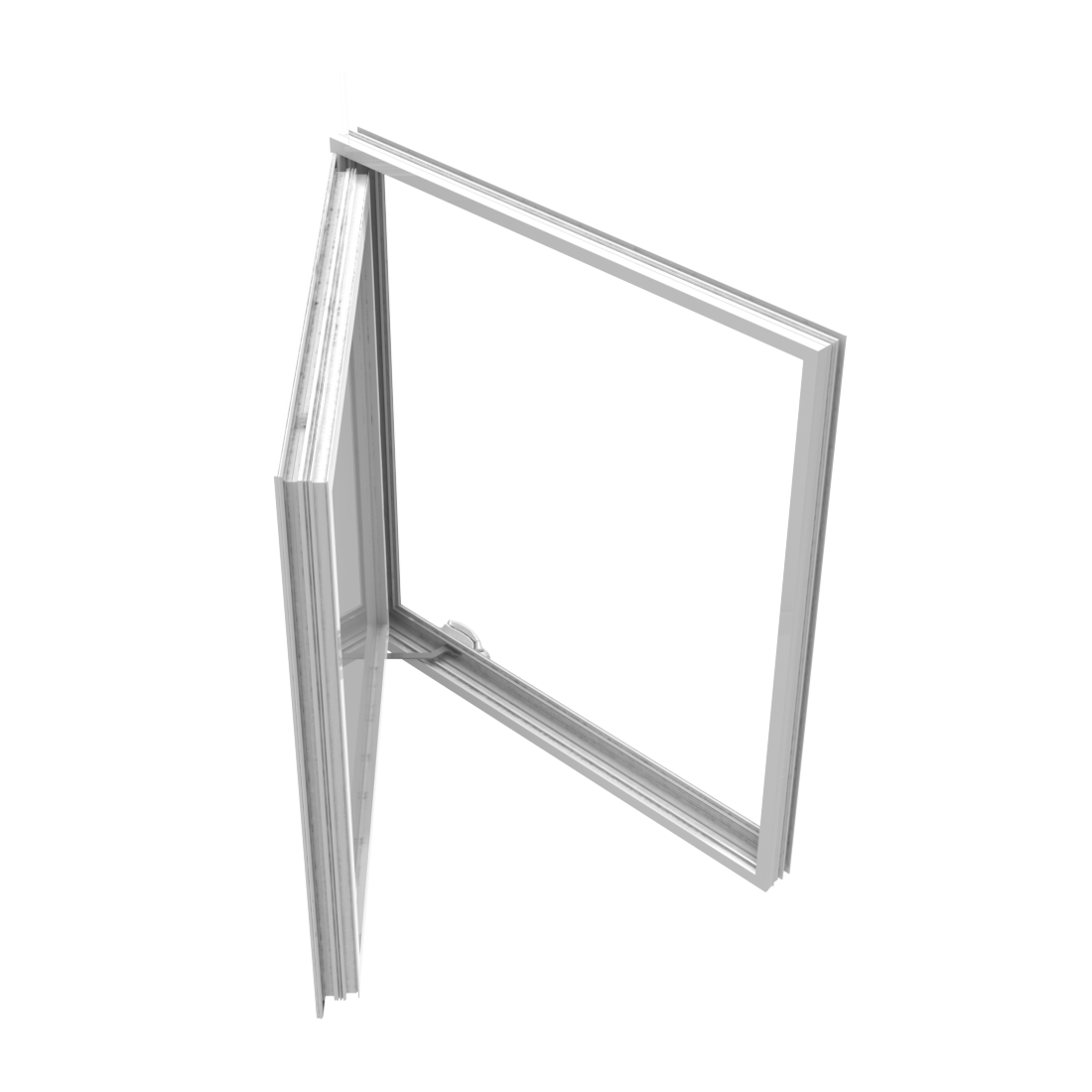

The ES-P252 is a thermally broken, impact rated, project-out window for insulating laminated glass. This product is available in casement, awning and fixed configurations. The use of polyamide technology allows dual finish combinations.

Designed for the USA market

FEATURES
  • Hurricane Resistant
  • Thermally Broken

Configurations

Awning

System Description

  • Casement: Small and large missile impact rated , Maximum size: 48” width x 84” height , Frame depth: 2 1/2” , Tested water infiltration: 17.1 psf , Test design load: +95/-105 psf. (SMI), +95/-105 psf. (LMI)
  • Awning: Small and large missile impact rated , Maximum size: 42” width x 37” height , Frame depth: 2 1/2”
  • Fixed: Small and large missile impact rated , Maximum size: 60” width x 144” height , Frame depth: 2 1/2” , Tested water infiltration: 17.1 psf , Tested design load: +95/-105 psf. (SMI), +95/-105 psf. (LMI) , U-value: 0.37 on insulating laminated SB 70 , SHGC: 0.23 on insulating laminated SB 70

Features

  • Single arm operator and multi-point lock
  • High performance stainless steel four bar hinge or butt hinges
  • Head receptor, sub-sill and strap anchors available
  • Thermally broken frame
  • Flange or equal leg frame
